ICON 3.0 Series Coilover Kits

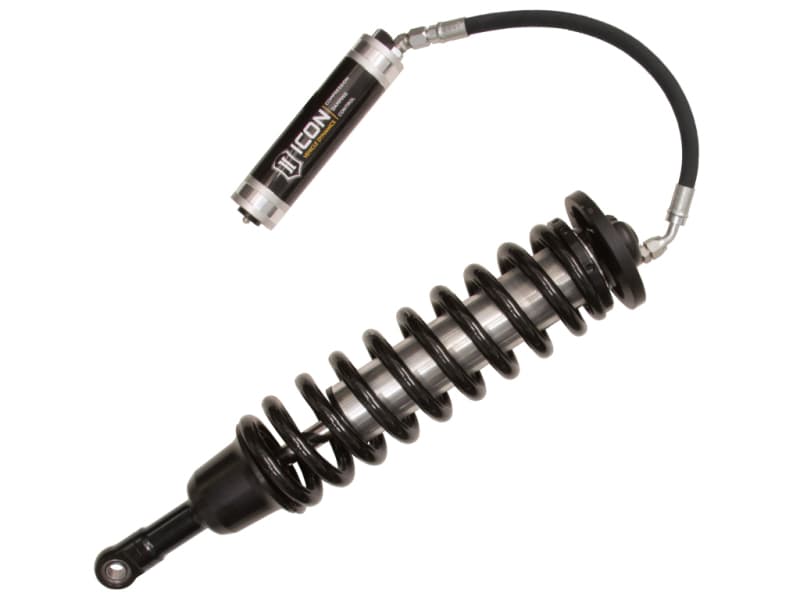

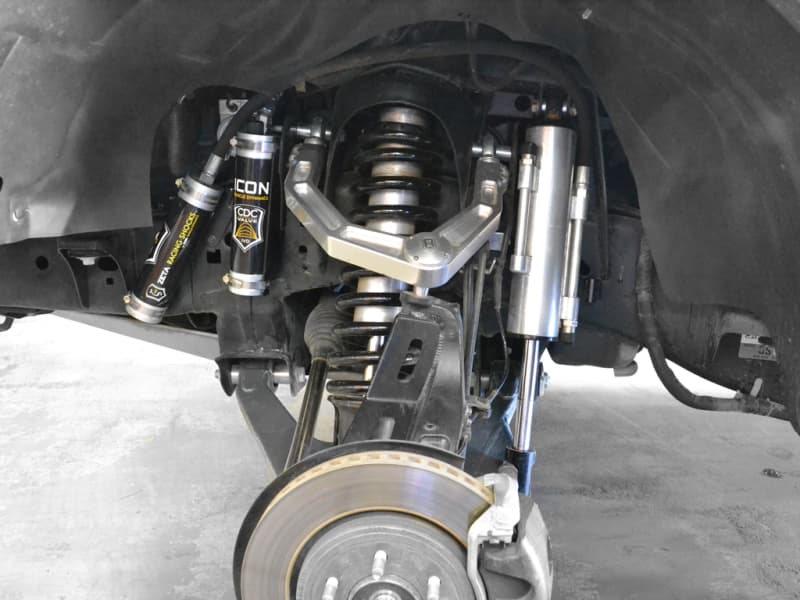

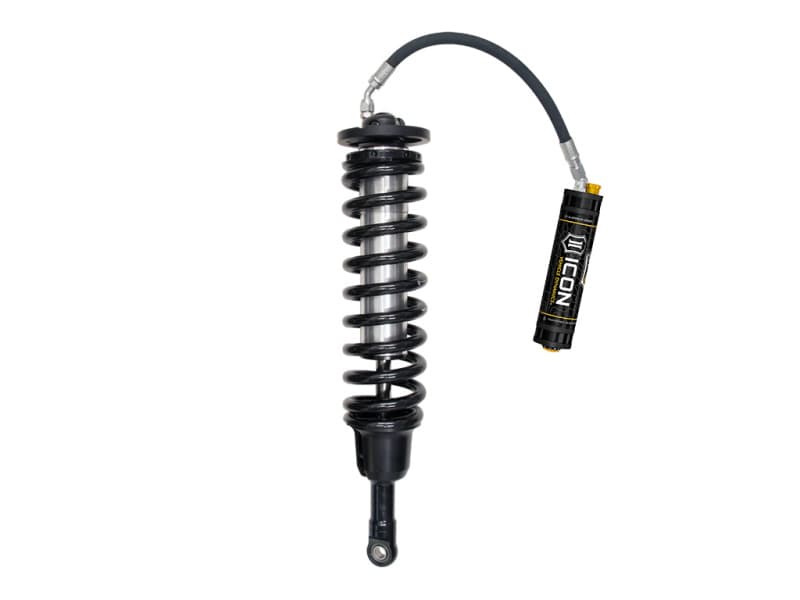

ICON 3.0 Series Coilover Kits ICON Vehicle Dynamics reimagined position-sensitive performance with the ICON 3.0 Series Coilover Kits. Built around a true 3" main piston, these coilovers deliver superior control, responsiveness, and ride quality without the compromises of traditional internal bypass designs. True 3" Main Piston — Robust digressive rebound and flutter-stack compression for stable road-holding and sharp cornering. Multi-stage Compression — An additional internal hydraulic system acts like an internal hydraulic bump stop, providing extreme forces in the final 40% of travel for maximum bottom-out control. Independent Tuning — Multiple compression and rebound stages are tuned independently to optimize performance specifically for the Ford SVT Raptor front suspension. 10-Position External Compression Adjuster — “Easy to Adjust” compression damping control valve delivers 10 high-resolution settings that change the shock’s feel across the entire stroke, from soft to firm. Whether you demand precision on pavement or confidence in extreme off-road conditions, the ICON 3.0 Series Coilover Kits provide refined control, improved response, and unmatched bottom-out protection. Ideal for builders and enthusiasts who want a customizable, high-performance front suspension solution.
